REACH Sphere v4

Zero movement. Full speed.

The world's first zero-movement input system. Hands rest on heated palm balls. Fingers tilt balls through positions. Thumbs tap pads and roll trackballs. All keys fully programmable.

0

Hand movement

58

Keys

2

6DOF Trackballs

Palm Balls (heated 38°C, 25° tilt)	2
Finger Pallets (4 tilt balls each)	2
Thumb Modules (trackball + pads)	2
Dock Touchscreen	1
Qi Chargers	2

Ergonomics

Zero hand movement. Everything comes to your fingers.

Fully Adjustable

Height — gas spring column
Angle — 25° palm tilt in any direction
Spread — set your own width
Finger position — ball sizes match your hand
Layout — QWERTY, Dvorak, Colemak, or custom

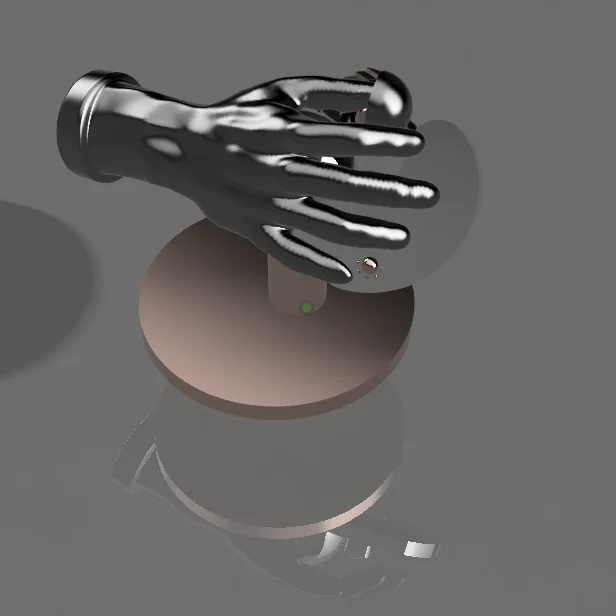

Zero Movement

Hands rest on heated palm balls
Fingers tilt balls — no reaching
Thumbs stay in place — pads + trackball
All input within finger reach

Traditional keyboard: fixed 19" spread, constant hand movement

REACH Sphere: variable spread, zero hand movement

Finger Pallet Layout

All keys programmable. Dbl-tap up for numbers. Dbl-tap down for characters.

Pinky

ring

middle

index

middle

ring

Pinky

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

F11

F12

` ~

1

2

3

4

5

6

7

8

9

10

\ |

"= +"

q

w

e

undo

m2

r

t

y

u

bks

copy

i

o

p

[ ] { }

Tab

a

s

d

m1

f

g

h

j

enter

paste

k

l

; :

( )

shift/lock

z

x

c

redo

m3

v

b

n

m

esc

cut

, <

. >

/ ?

shift/lock

!

@

#

$

%

^

&

*

Purple Pinky Green Ring Yellow Middle Pink Mouse Orange Index Red Edit Blue F-keys

Ball Tilt Positions — Left Hand | Right Hand

|

TMR sensors detect ball tilt. Magnetic click, spring return. No contact, no wear. 1000Hz polling.

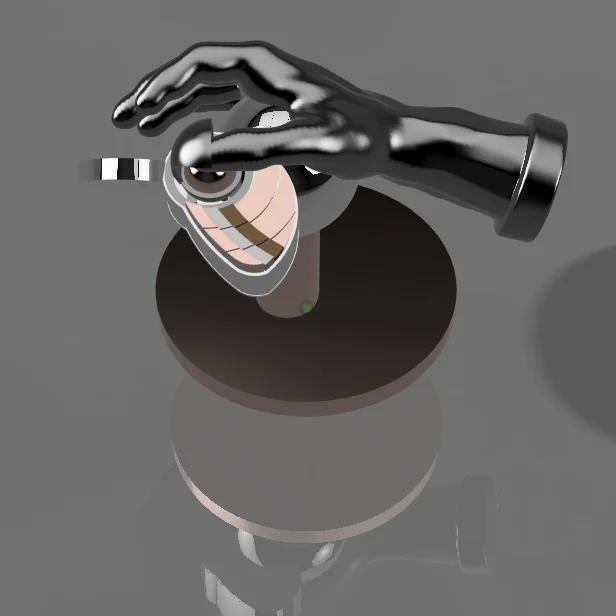

Thumb Modules

6 pads left, 9 pads right + trackball each. All programmable.

LEFT THUMB

dlt	alt	ctr
	Calc	Space

zoom/nudge/scroll

RIGHT THUMB

WND	FN	page
ctr	alt	dlt
Space	Flip	Tool

2D/3D mouse

Thumb Trackball — 6DOF Input

LEFT THUMB

Roll: Zoom
Tilt: Scroll
Click + roll: Fine adjust
Dbl click: Fit to view

RIGHT THUMB

Roll: Mouse cursor
Tilt: 3D navigate
Click: Select
Dbl click: Play/pause

Joystick meets spacemouse meets trackball. PMW3360 optical + TMR tilt. 1000Hz, <1ms latency.

Calculator Mode

Calc pad toggles. Left hand becomes numpad.

%	Plus	Minus	Mult	Divid	Equals
$	6	7	8	9	0
.	1	2	3	4	5

Flip Mode — One Hand

Flip pad toggles. Right hand mirrors left alpha.

flip/one hand
y	u	i	o	p	[ ] { }
h	j	k	l	; :	( )
n	m	, <	. >	/ ?	shift/lock

Use Modes

Gaming

LEFT: Zoom, pan, slow mode, map
RIGHT: Aim, quick turn, lean, fire, reload, ADS

Coding

LEFT: Scroll V/H, nudge, zoom fit
RIGHT: File tree, jump func, switch tabs, go to def

Creative Pro

LEFT: Zoom, dolly, pan, scrub, nudge
RIGHT: Orbit, Z-axis, rotate, select, play/pause

All modes configurable. Replaces mouse + spacemouse + shuttle + controller.

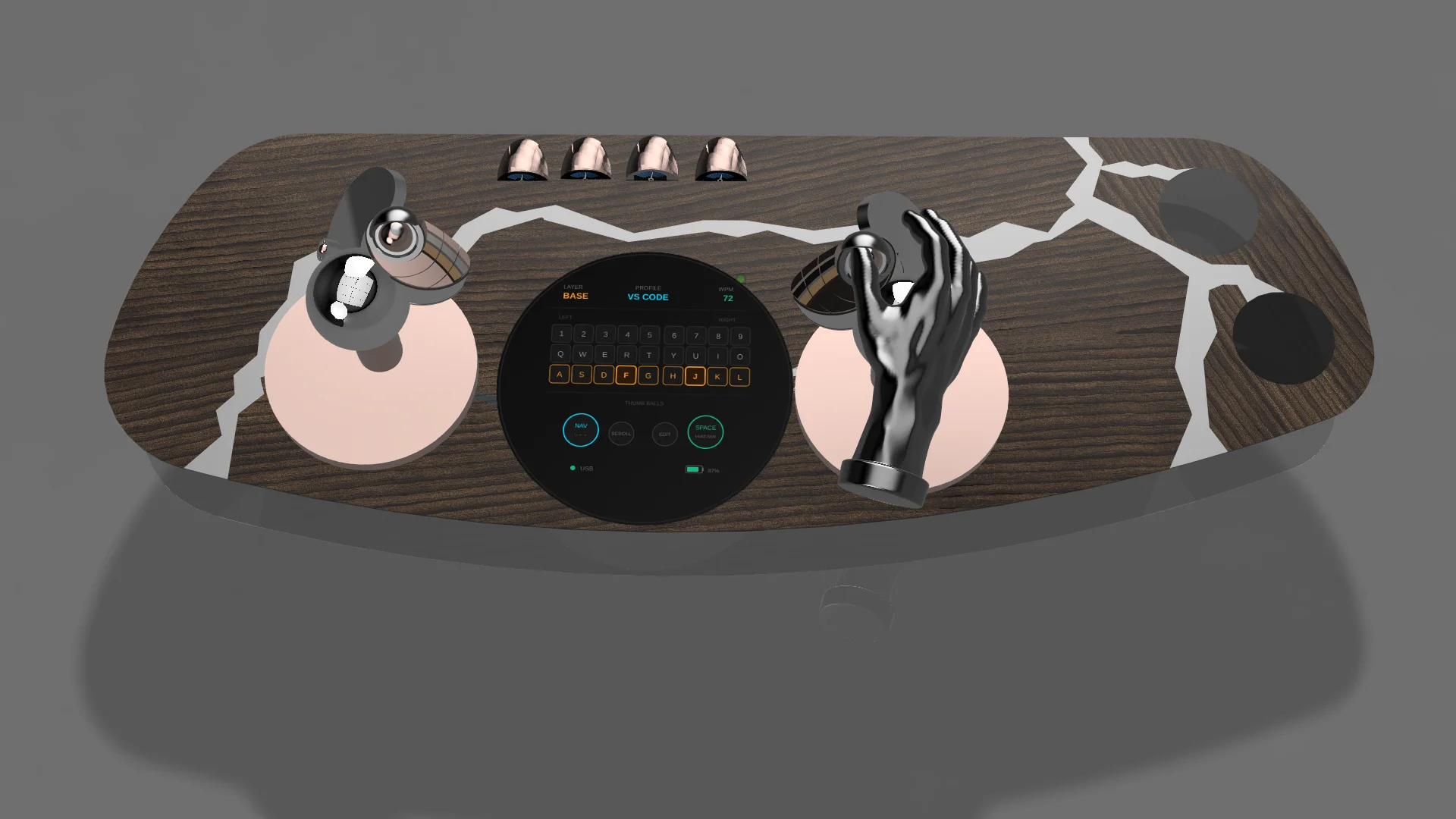

Display — Phone App & Dock Touchscreen

• Live key visualization
• Layer indicator
• Modifier state

• Profile name
• Macro recording
• Connection & battery

Technical Specifications

Finger Balls

Index	12mm, 9 pos
Middle	10mm, 3 pos
Ring	10mm, 3 pos
Pinky	8mm, 6 pos
Sensor	TMR

Palm Ball

Diameter	60mm
Temp	38°C
Tilt	25°

Thumb Module

Pads	12
Trackball	PMW3360 + TMR
DOF	6

Electronics

MCU	STM32H7 / RP2040
Connection	USB-C / BT 5.0
Polling	1000Hz

Target Market

Enterprise — RSI Liability

$20B+ annual claims
33% are RSI
$30K+ per claim
1 prevented = 40+ units ROI

Users

3D / CAD
Video editors
Developers
Accessibility
Gaming

Pricing

REACH Core

$699

2× Palm balls
2× Finger pallets
2× Thumb modules
USB-C + Phone app

REACH Pro

$899

Everything in Core
Dock touchscreen
Walnut/epoxy deck
2× Qi chargers
Bluetooth 5.0

REACH Station

$2,499

Everything in Pro
Castle computer
34" curved display
Spatial audio
